EBS Boltmark-II®

New generation continuous inkjet printers

Get In Touch

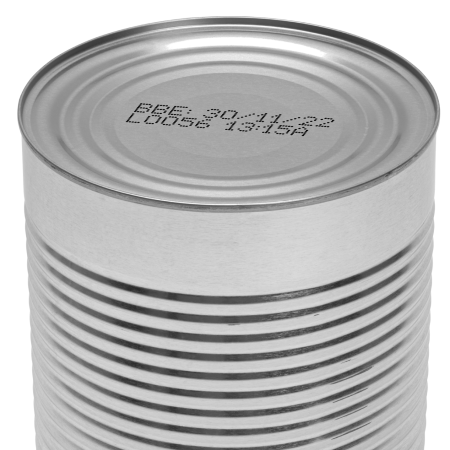

HIGH SPEED NON-CONTACT PRINTING

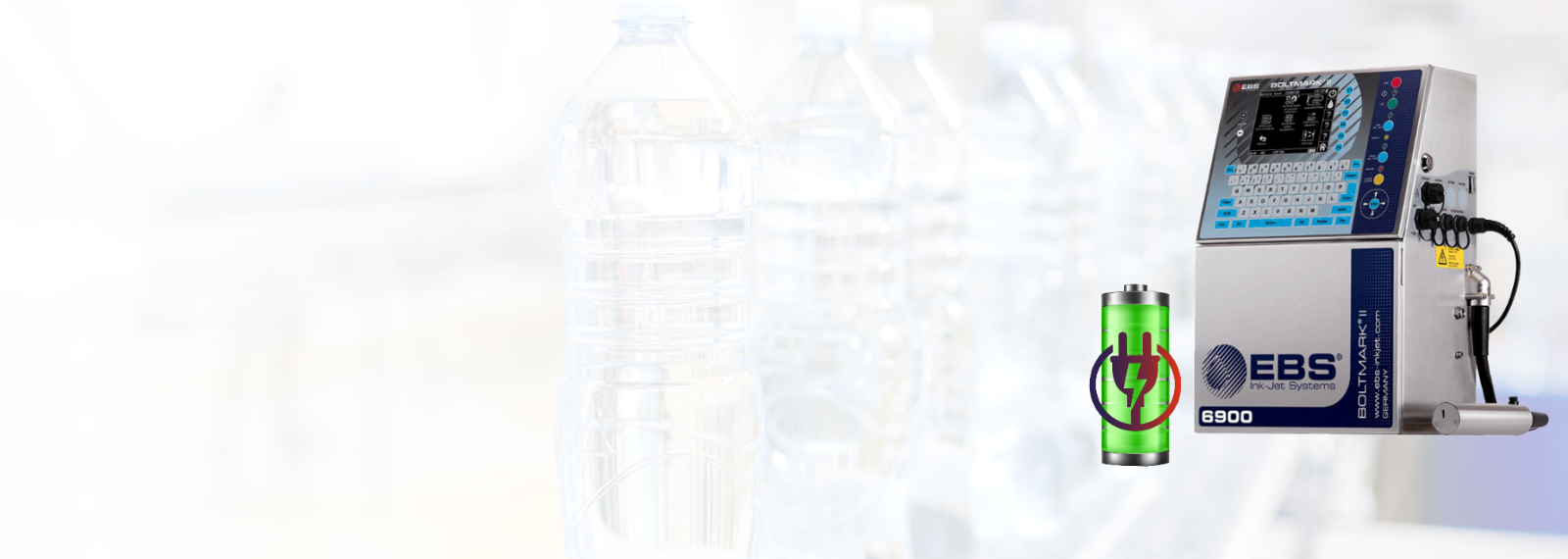

ACPS Anti-Clogging Power Supply

PREVENTS STARTUP ISSUES AFTER POWER INTERRUPTION

Comprehensve Ink Range

Including high-contrast and food-grade

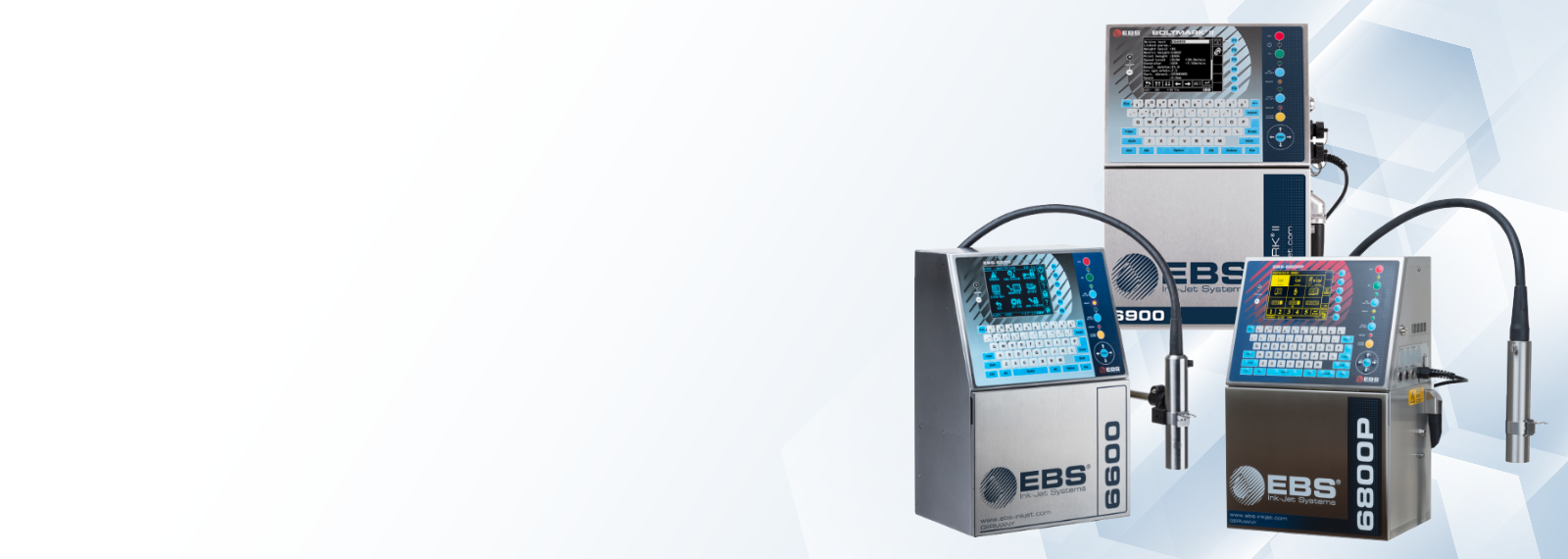

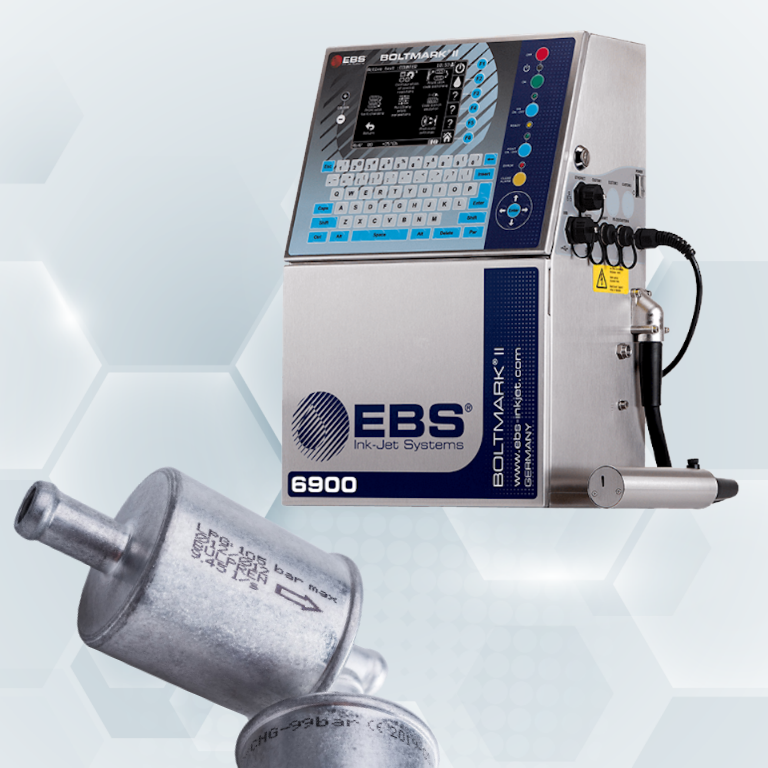

EBS Boltmark® II Series

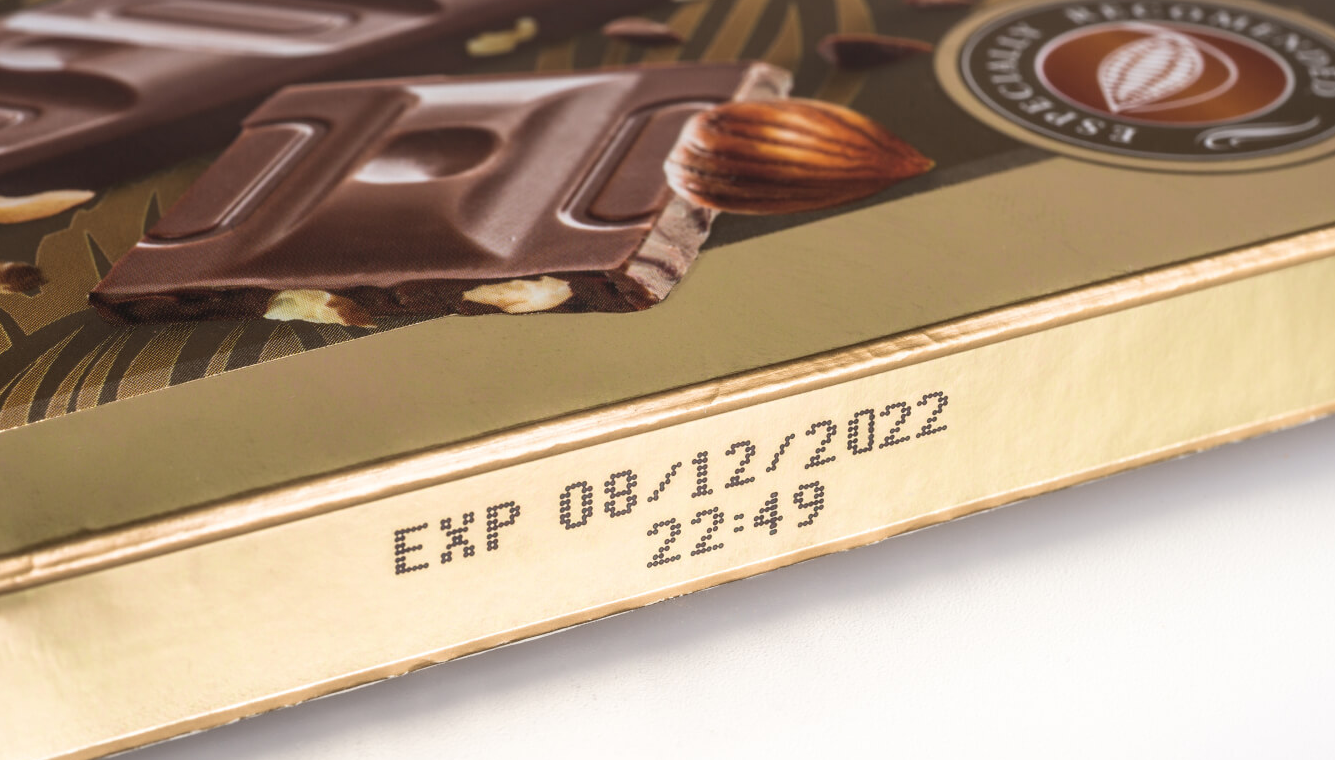

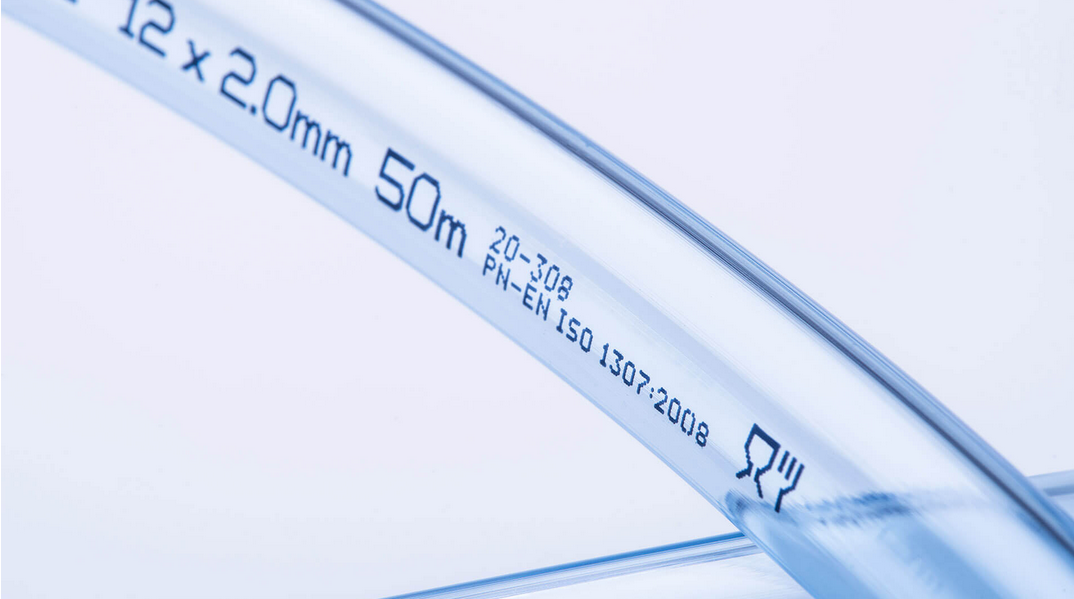

The latest generation Boltmark® II continuous inkjet (CIJ) printers from EBS offer improvements in performance, functionality and reliability making them the ideal choice for marking almost any product including flat, curved and uneven surfaces both porous and non-porous. Print batch codes, durability dates, sequential numbers, logos, barcodes and 2D codes using a wide range of inks.

The convenient iModule® integrated ink system contains all wear parts and is designed to be changed in under a minute without tools and without the need for a service visit. Ink and solvent are also supplied in quick-change cartridges that simply click into place in seconds and can be changed without stopping the printer.

The Boltmark® II series has also been designed with efficiency in mind with a power consumption of just 19W. Ink and solvent consumption are also extremely low keeping the overall cost of ownership to a minimum. IP55 protection comes as standard preventing dust and water ingress including screen and connector protection against water sprayed from any angle. The EBS-6900 is also available with IP65 protection for extreme envitonments.

Get In Touch

Specification

	EBS-6600	EBS-6900	EBS-6800P
Ink type:	Dye-based for light surfaces	Dye-based for light surfaces	Pigmented, opaque for all surfaces
Ink colours:	Black and thermochromatic (black/blue)	Black and thermochromatic (black/blue)	White, grey, green, yellow, dark blue, light blue
Dots in matrix:	16 (25 optional)	25 (32 optional)	16 (25 or 32 optional)
Print lines 7x5 font:	2 (3 optional)	3 (4 optional)	2 (3 or 4 optional)
Print lines 5x5 font:	2 (4 optional)	4 (5 optional)	2 (4 or 5 optional)
Graphics editor:	Built-in	Built-in	Built-in
Barcode printing:	All common formats	All common formats	All common formats
2D code printing:	QR and Datamatrix ECC200 optional	QR and Datamatrix ECC200 standard	QR and Datamatrix ECC200 optional
Print direction:	Any	Any	Any
Printhead distance:	Up to 30mm from product	Up to 30mm from product	Up to 30mm from product
Print height:	12mm max. - text from 1.2 to 12mm	16mm max. - text from 1.2 to 16mm	12mm max. - text from 1.4 to 12mm
Max print speed:	Up to 500mm/sec (5x5 font)	Up to 500mm/sec (5x5 font)	Up to 500mm/sec (5x5 font)
Message storage:	100 messages	1,000 messages (2000 optional)	1,024 messages
Printhead cable:	3m	3m (6m optional)	3m
Protection rating:	IP55	IP55 (IP65 optional)	IP54
Printhead type:	Straight	Straight (90 degree angular optional)	Straight
ACPS power supply:	Optional	Optional	No
Dimensions:	300x210x460mm (WxLxH)	300x210x460mm (WxLxH)	300x210x470mm (WxLxH)
Head dimensions:	40mm OD x 198mm	40mm OD x 198mm	40mm OD x 198mm
Weight:	12.5Kg	12.5Kg	13.8Kg
Power:	100-240Vac at 50-60Hz; 19W	100-240Vac at 50-60Hz; 19W	100-240Vac at 50-60Hz; 19W

EBS-6600 Brochure EBS-6900 Brochure EBS-6800P Brochure

Features and Options

The ACPS is an intelligent power supply available as an option on the EBS-6600 and EBS-6900 models. It uses Super Charger Capacitors to maintain power should the mains supply be interrupted. For short power outages up to 30 seconds, the ACPS keeps the printer running as normal. Should the interruption last longer, the printer automatically shuts down including flushing to prevent ink clogging and restarting issues.

ACPS

Anti-Clogging Power Supply

IP65 protection is available as an option for the EBS-6900 Boltmark® II printer allowing it to be used in the harshest industrial environments. With this option, the EBS-6900 is completely dust-tight and safe against low pressure water jets directed at the printer from any angle making it ideal for use in wash-down areas and dusty environments such as timber mills.

IP65 Protection

Harsh environment option

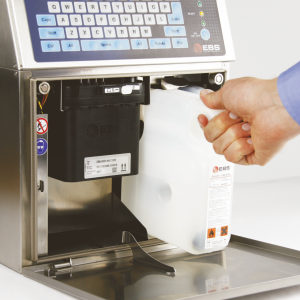

All Boltmark® II printers are fitted with a convenient iModule® that contains all service wear parts that can be changed in 1 minute without the need for a service visit. A range of iModules is available to suit different shift patterns. Ink and solvent are supplied in quick-change cartridges that simply click in place with no decanting or caps to fit. You can even change the ink and solvent without stopping the printer working.

Boltmark cij printer imodule and ink cartridges

Low maintenance

Quick change iModule® and fluids

Monitor and control up to 32 Boltmark® II series printers from anywhere in the wolrd. The my.ebs.ink® portal allows access to the printers' settings, print message editing, message selection, status reports and consumable levels via Ethernet and web browser.

my.ebs.ink®

Printer administration

Boltmark® II Inks

The Boltmark® II series can be used to mark almost any material whether porous or non-porous, pale or dark-colured. All inks dry on contact and offer excellent durability. The EBS-6600 and EBS-6900 printers use dye-based inks to mark pale colored products including specialist inks for difficult substrates and inks compliant with EuPIA guidelines. Thermochromatic ink is also available which changes colour when subjected to a given temperature.

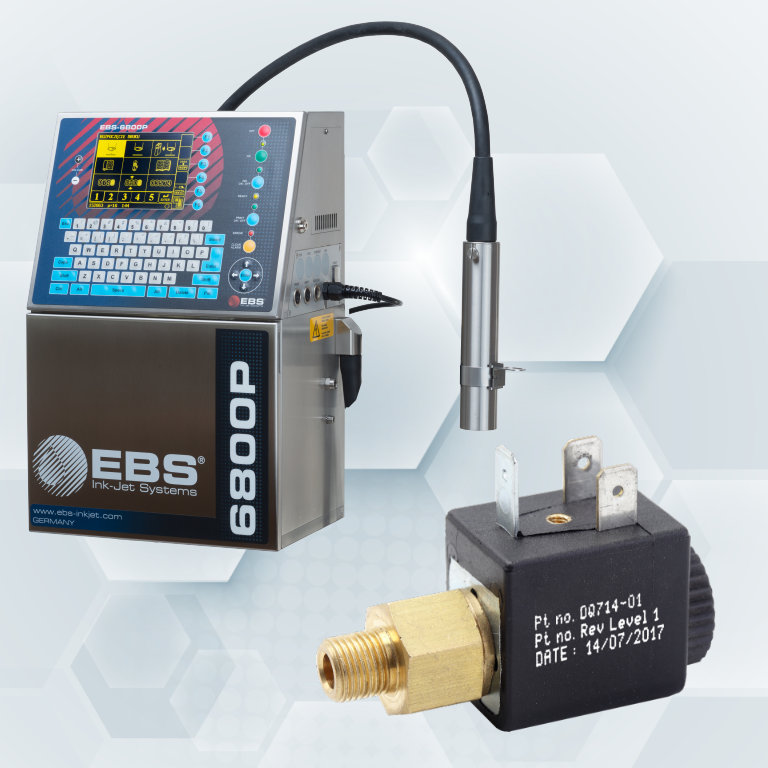

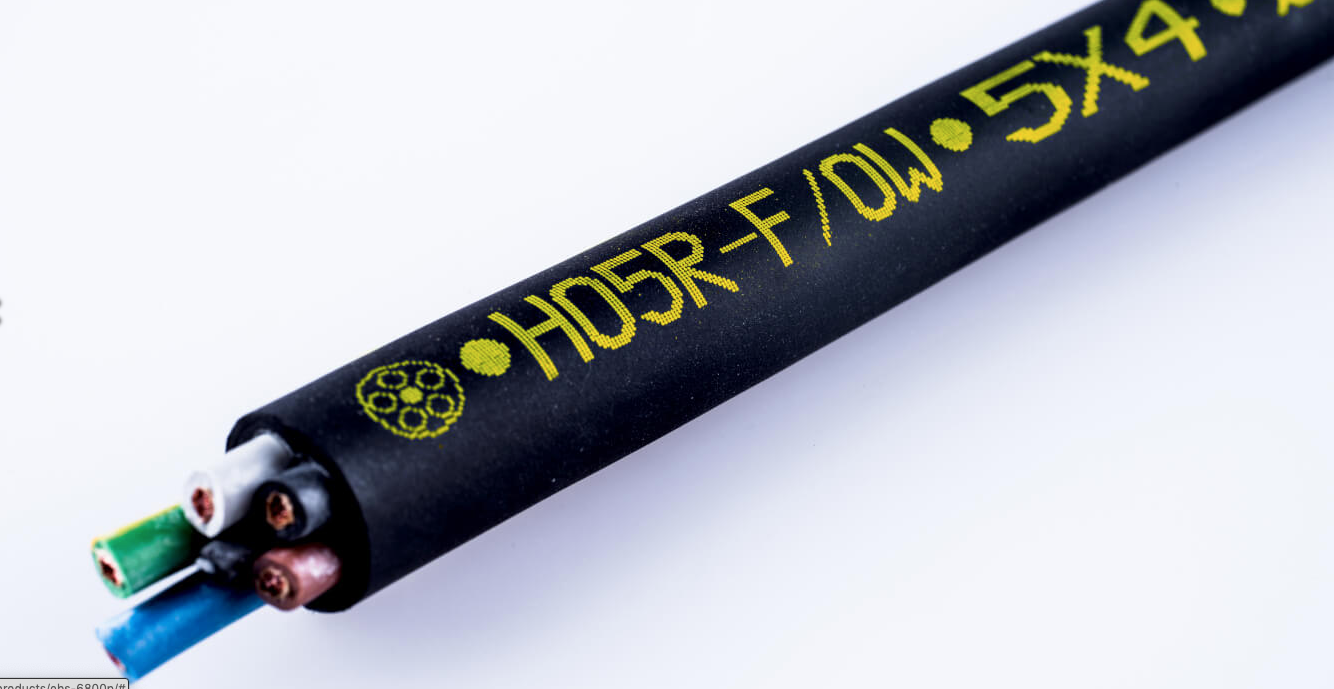

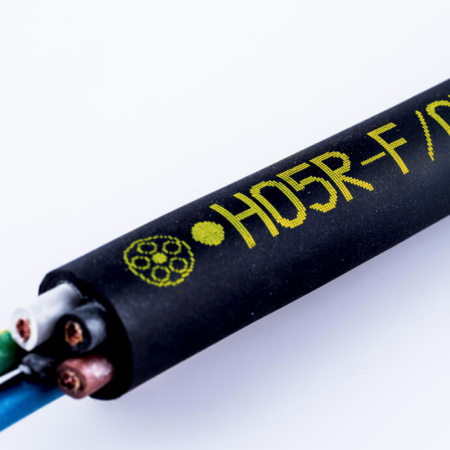

The EBS-6800P uses pigmented, opaque inks to print high-contrast marks onto dark-coloured products. White, yellow, green, dark blue, grey and light blue pigmented inks are available. Where both dark and light products need to be marked, the EBS-6800P light blue, grey and green inks offer the possibility to mark all products with the same ink.
