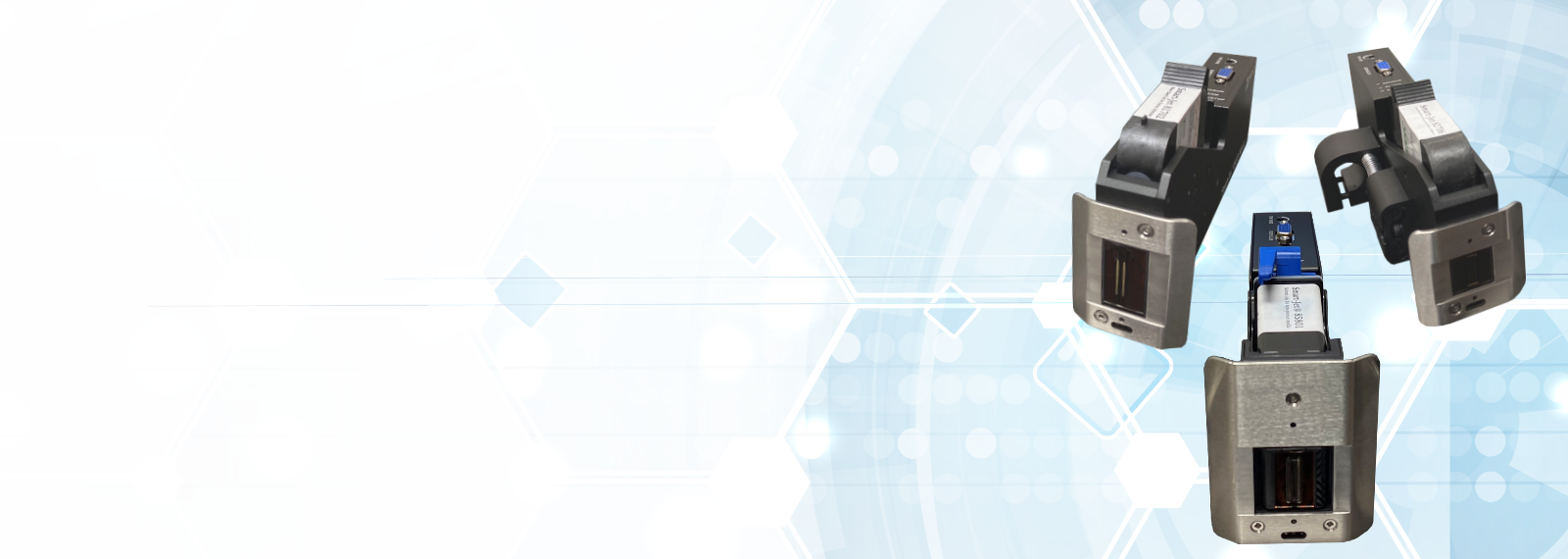

3 different printheads
Smart-Jet® DUO Plus for ½-inch print
Smart-Jet® DUO Max for 1-inch print
Smart-Jet® DUO Reach for uneven and recessed products
Smart-Jet® DUO
Modular thermal inkjet (TIJ) system
7-inch colour touchscreen controller

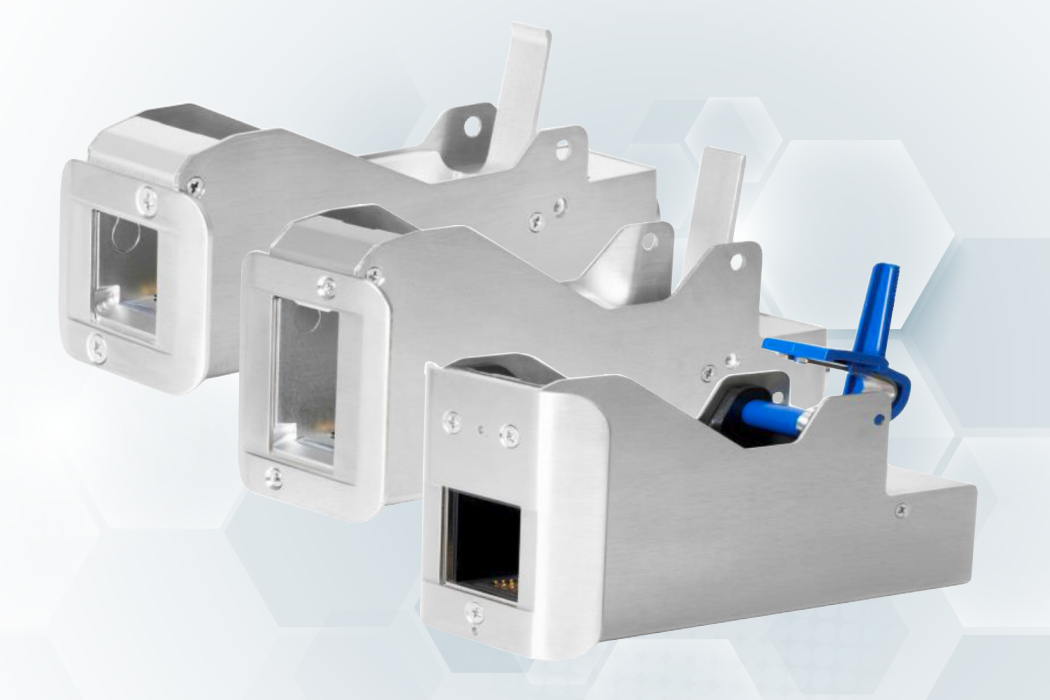

3 different printhead options
Smart-Jet® DUO Plus: ½-inch (12.7mm) high print
Smart-Jet® DUO Max: 1-inch (25.4mm) high print from a single cartridge - seamless without stitching
Smart-Jet® DUO Reach: ½-inch (12.7mm) high print with 10mm throw for uneven or recessed products
2-inch print option with dual DUO Max printhead
Print text, counters, date, time, expiry date, Julian date, shift code, detailed graphics and all common barcodes and 2D codes
Print Online Data (POD) mode to print variable data directly from a database
8GB memory to store practically unlimited print templates
USB backup and restore

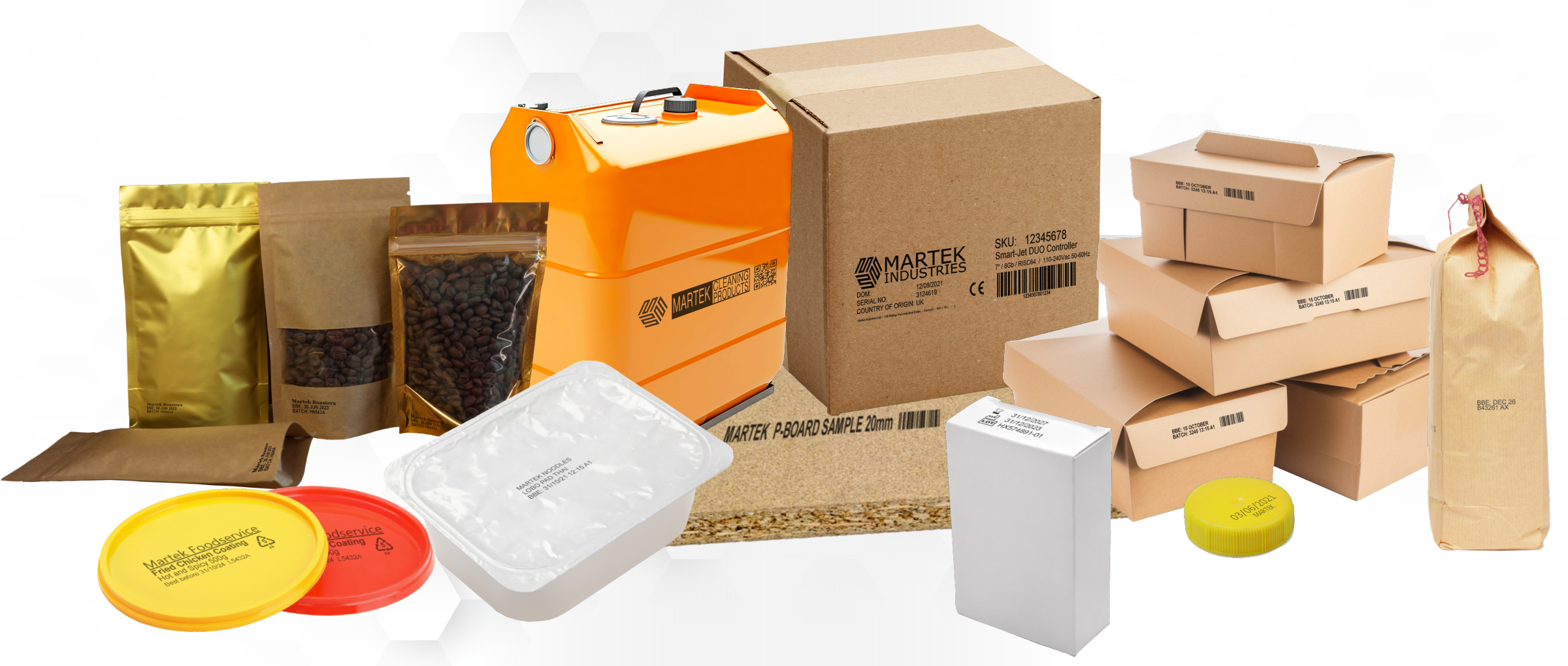

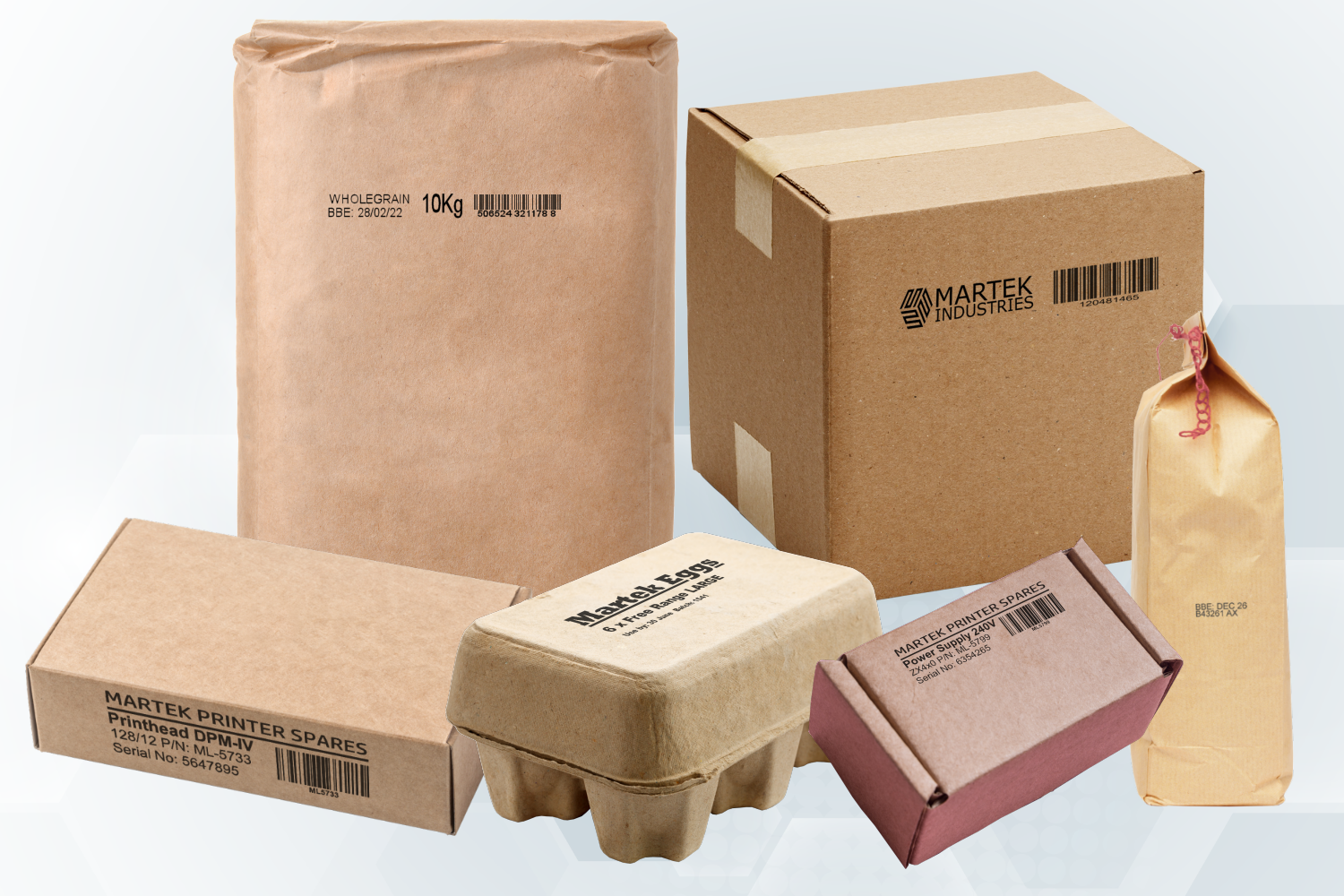

Wide choice of ink types and colours for porous and non-porous surfaces
Bulk ink option for high-volume applications
Specification |
| Smart-Jet® DUO | |
| Print technology: | Thermal inkjet (TIJ) |
| Controller: | 7" colour touch-screen driving 1 or 2 printheads |
| Printheads: | DUO Pro ½-inch (12.7mm), DUO Max 1-inch (25,4mm), DUO Reach ½-inch (12.7mm) long-throw for uneven surfaces |
| Print message contents: | Text using True-Type fonts, variable data, all common barcodes and 2D codes, detailed graphics |
| Variable date: | Date, time, expiry date, counters, shift code, Julian date, database, external input (barcode reader, scale...) |
| Print resolution: | Up to 600dpi depending on line speed |
| Message storage: | 8GB - practically unlimited message storage |
| Print orientation: | Forwards or down, printheads can be same side, opposite sides or top and side of product |
| Product sensor: | Integrated into printhead or external depending on product |
| Inks: | Water-based black. Solvent-based black, blue, red, white and UV-fluorescing security marking ink. MEK-based black for DUO Reach |
| Throw distance: | 6mm for DUO Pro and DUO Max printheads, 10mm for DUO Reach printhead |
| Options: | External sensor, shaft encoder, bulk ink system (black inks only) |
| DUO Controller Brochure DUO Pro Printhead Brochure DUO MaxPrinthead BrochureDUO Reach Printhead Brochure |
Features and Options

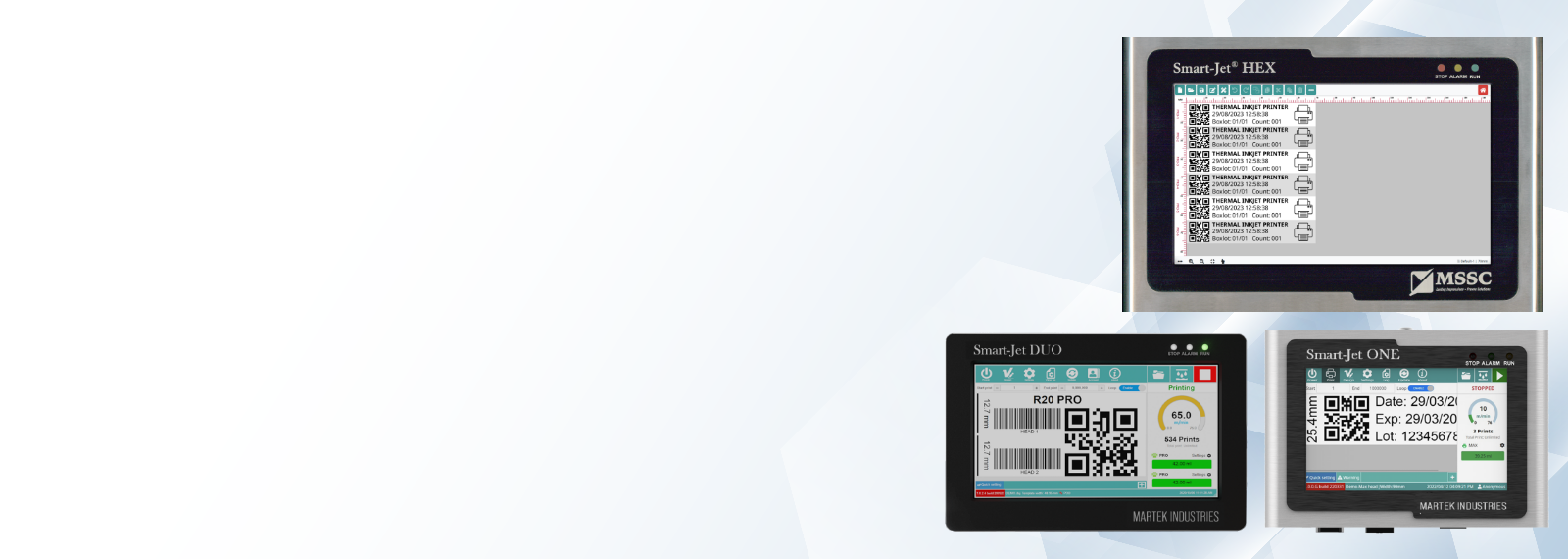

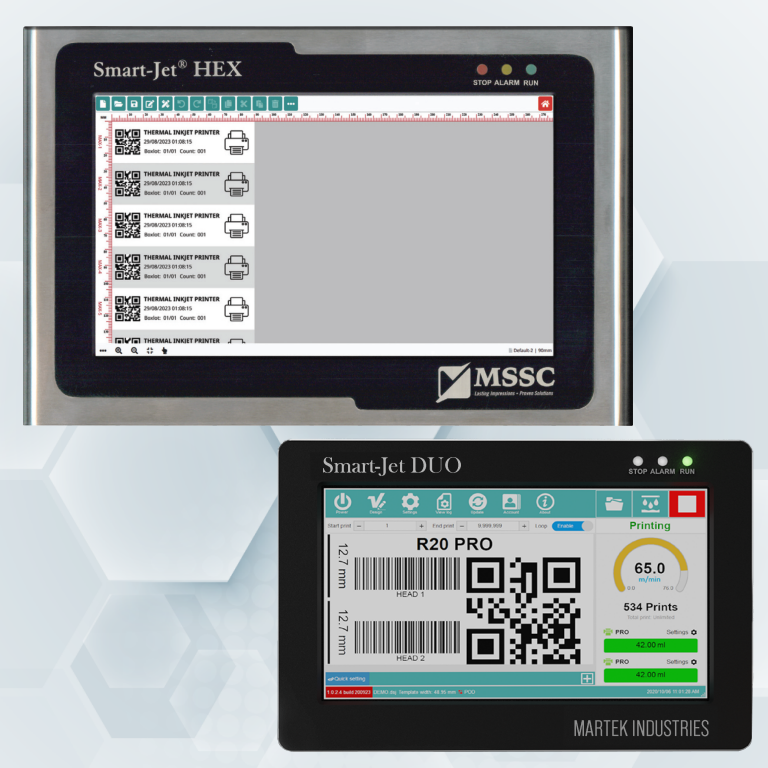

7-inch touchscreen
Full system control and monitoring
Modular design
Choice of 3 head types
Multiple configurations
Suitable for many applications
Wide ink choice

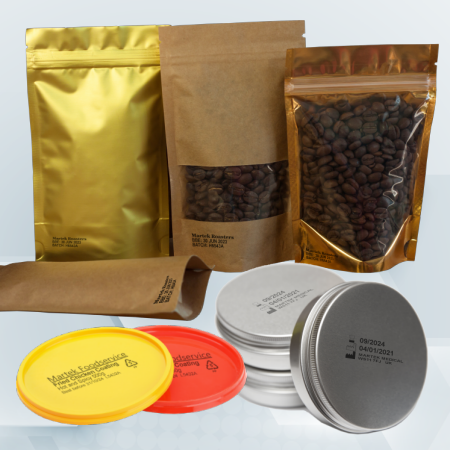

For porpous or non-porous surfaces
Smart-Jet® DUO
Gallery
