Valentin Thermal Transfer Coders

Home > Valentin Thermal Transfer Coders

Comprehensive range of thermal transfer coders for marking flexible packaging materials, flat cartons, pouches, bags and other flat materials. All models will print text in any point size and font, barcodes, 2D codes and detailed graphics at 300dpi resolution.

Standard coder series for most applications with intermittent or continuous printing modes. Standard bracket kits make installation on most form-fill-seal, flow wrappers and other machines simple. A choice of 53, 107 and 128mm wide versions is available. The long, 900m ribbon length and ribbon saving ensure efficient printing.
Advanced coder series with switchable print mode between continuous and intermittent operation. The 7-inch colour touchscreen controller provides a simple operator interface for adjusting print settings and selecting and editing print messages. A choice of 53, 107 and 128mm wide models is available.

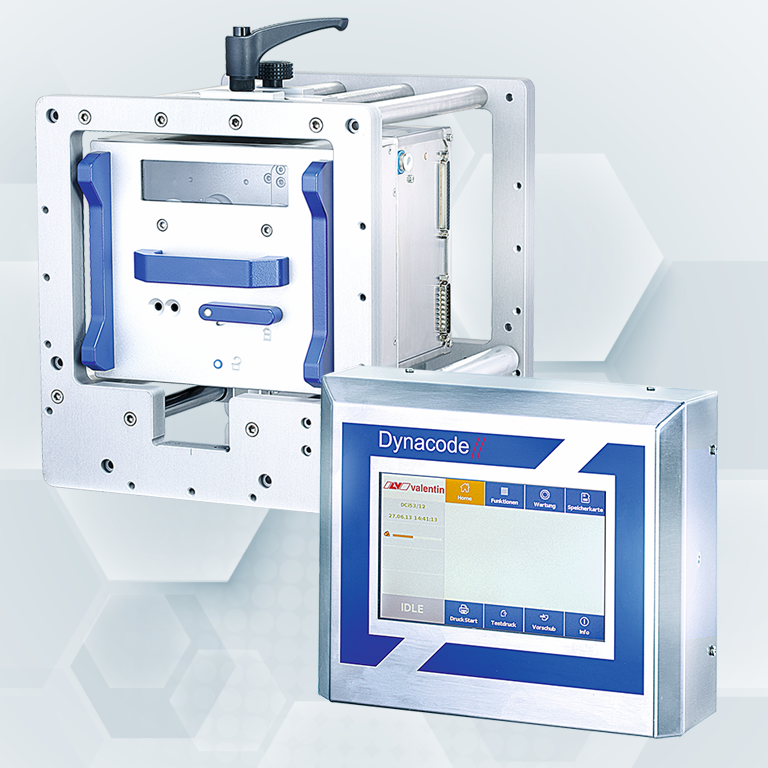

For dusty and wet environments, the Dynacode IP series offers protection against contamination. The ribbon cassette can be replaced by a cleaning cassette that seals the print unit during cleaning processes. The industrial controller has heavy-duty industrial cable connectors for added protection.

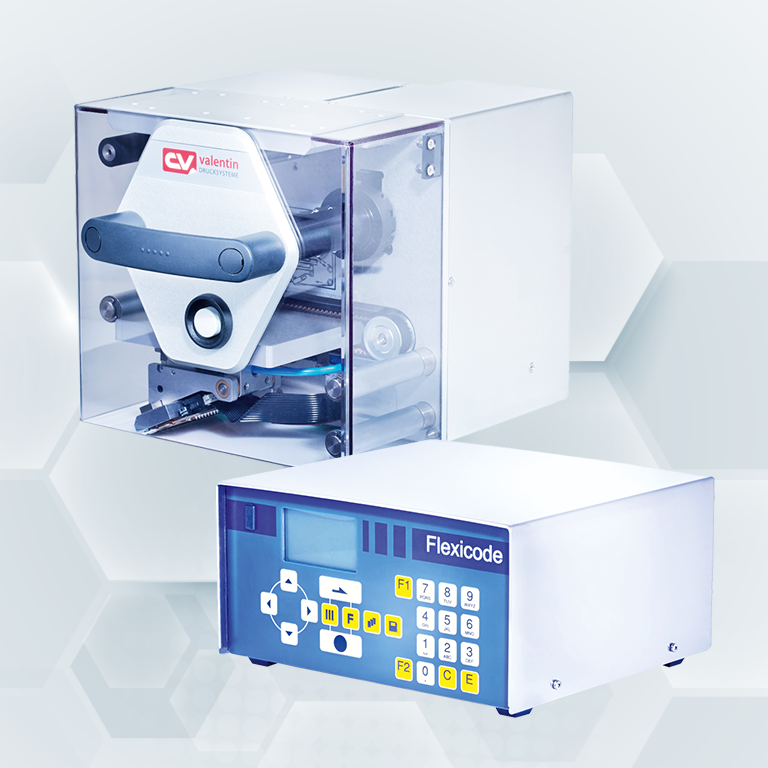

Many thermal transfer printing applications simply require a small amount of overprinting within a confined area. For these applications, the Flexicode offers a very cost-effective solution. Continuous or intermittent mode can be selected with 53 x 40mm print area in intermittent mode and 53 x up to 3000mm in continuous mode.
DPM III-xi is the latest generation of the popular Direct Print Module series with improved electronics and processing. All models print in intermittent mode with a range of models with different print widths and stroke lengths. Wide format printers can easily be used on multi-lane packing machines including Multivac and Meca thermoformers.
Stand-alone operation is possible using the keypad on the controller to select the print message and enter variable data.
The advanced bracket system allows integration with continuous and intermittent packaging machines.
For continuous printing applications, harsh-environment encoders can be used via the industrial 24V encoder port.
The compact case design and convenient cable access allow installation in confined spaces.
Three print widths are available; 53, 107 and 128mm all with stroke lengths ranging from 60 to 630mm.



Dynacode IP
