Ventus 920

Wipe-on print-and-apply system

Label the top or side of moving products

Pivoted flap applicator follows product contours

Label size from 25 x 40mm to 120 x 150mm

Nip roller integrated into applicator head

Choice of basic controller or touch-screen interface

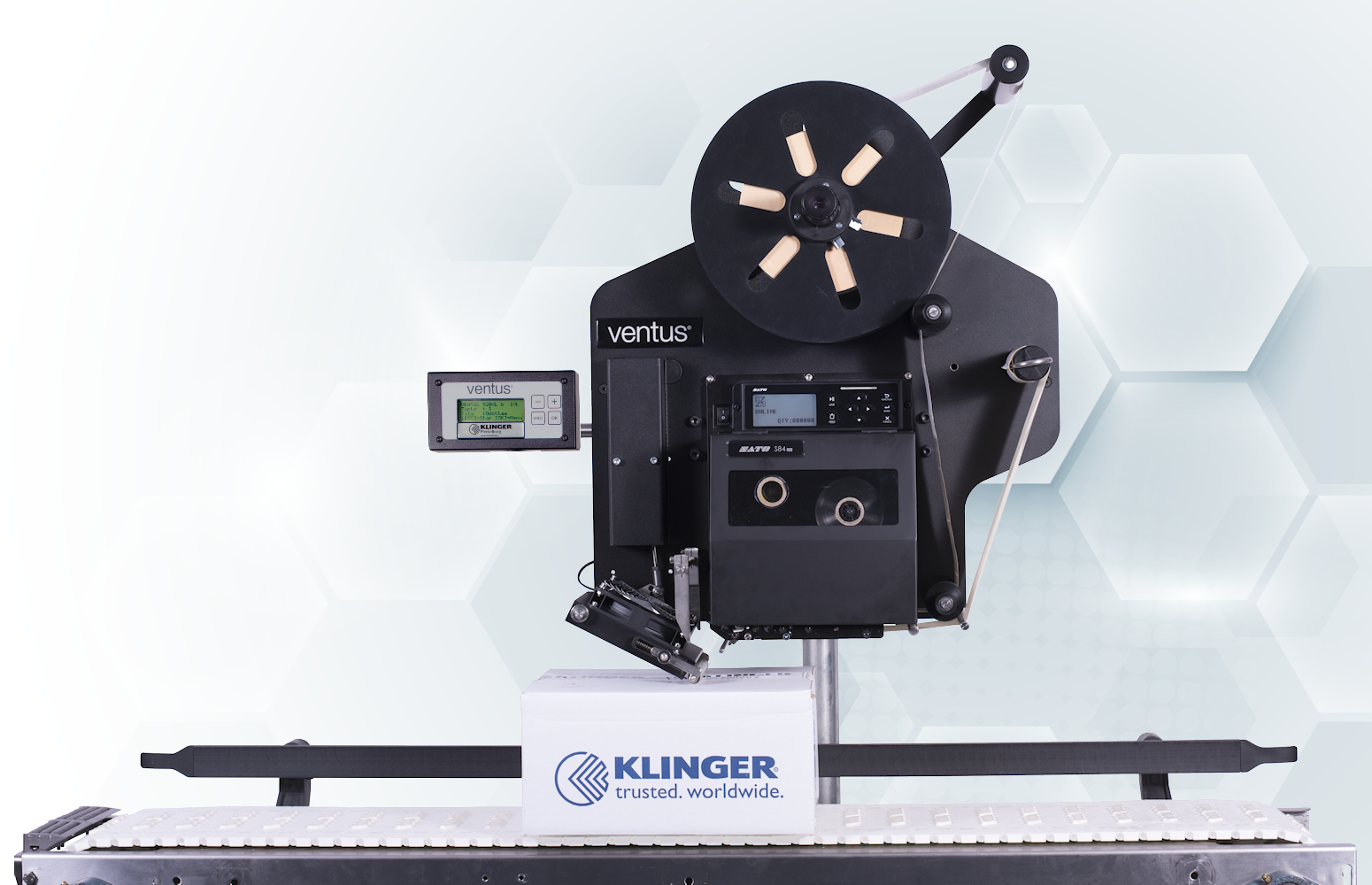

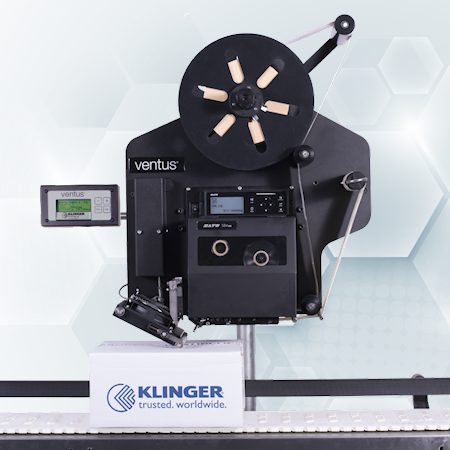

Basic controller allows system settings to be adjusted and stored for quick recall

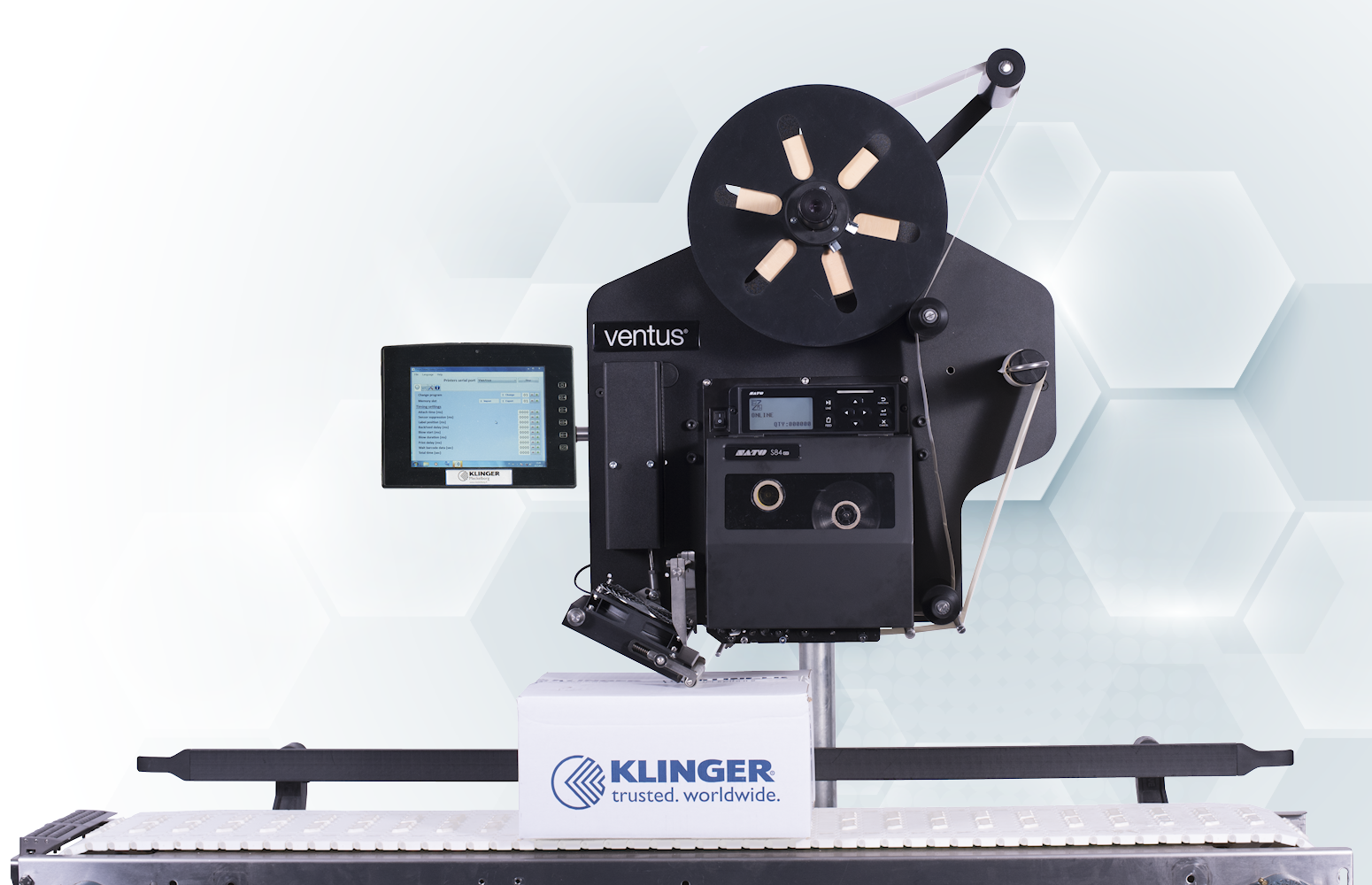

Touch screen controller provides Windows-based interface for configuring the system and running label printing software

SATO print engines offer 200, 300 or 600dpi print resolution - other brands of printer can also be used

Thermal transfer or direct thermal print modes

Specification

Application method: Wipe-on using flap applicator with integrated nip roller
Controller: Basic keypad or touch-screen interface
Application positions: Top or side of moving products
Label width: 25 to 120mm
Label length: 40 to 150mm
Max. throughput: 60 labels per minute (25 x 40mm label size)
Printer options: SATO S84ex thermal transfer / direct themal print engines. Other makes also available
Print resolution: 200, 300 or 600dpi
Interfaces: USB2.0, Ethernet LAN, RS232 serial and parallel. WiFi and Bluetooth optional.
Dimensions HxWxD: 700 x 500 x 350mm (excluding printer)
Weight: 29Kg excluding printer, approx. 41Kg including printer
Power supply: 220-240Vac @ 50-60Hz
Compressed air: 6 Bar, clean and dry
Download Brochure
EBS-6600 Boltmark 2 series cij printer

SATO print engines

Ventus systems can use a wide range of thermal transfer and direct thermal print engines from all leading manufacturers. As standard, Martek equips Ventus systems with SATO S84ex and S86ex print engines.

The S84ex range includes models with 200, 300 and 600dpi resolution all with a print width of 104mm. For high-throughput applications, printing speeds up to 16"/sec (406mm/sec) are possible and ribbons up to 600m long can be used.

For wider labels, the S86ex range includes 200 and 300dpi resolution models with print speeds up to 14"/sec (356mm/sec).

All SATO print engines come with USB, Ethernet LAN, RS232C serial nad IEEE1284 parallel interfaces as standard. WiFi and Bluetooth interfaces are also available as options.
